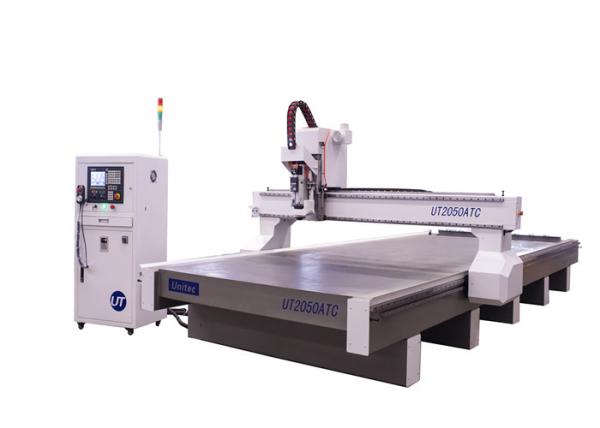

2050 Automatic Carousel Tool Changer CNC Cutting Router Machine for Corrugated Board
Advantages
1) Siemens 808D control system, very easy to operate.
2) Automatic tool change for four tools, customized for customers, work for different wood working.
X,Y,Z axis is with dusthood.
3) Mainly for MDF and wood cutting and engraving.
Applications and Material
- Furniture Industry: wood doorcabinetclassic furniturepanel furnitureetc
- Woodworking Industry: Automotive TrimStereo EquipmentInstrumentsOffice FurnitureCloset,etc
- ABS Industry Area: Aluminum panel copper soft metal engineering plastic epikote ABS panel
|
XYZ Travel Size | 2050X5000X220mm | |
|
Max Working Size | 2000X5000X160mm | |
| Table Size | 2000X5000mm | |
| Transmission Type | XY/Z XY rack/Z ball screw | |
| Guide Rail | Linear Guide | |
| Table Type | vacuum | |
| Vacuum Pump | 7.5KW/4.8KW 7.5KW water recycle cool pump or 4.8KW air pump |
| Spindle Power | 9.0KW 9KW China ATC spindle or Italy HSD ATC spindle |
| Tool Changer | Linear Tool Changer | |
| Spindle Speed | 24000rpm | |
|
Max Travel Speed | 40000mm/min | |
| Max Work Speed | 20000mm/min | |
| Motor | AC servo motor | |
| Work Voltage | AC380V 50HZ | |
| Controller System | / Ncstudio or Syntec | |
|
Processing Accuracy | 0.05mm | |
|
Repeat Positioning Accuracy | 0.01mm | |
| File Format | G/PLT G code or PLT | |
| Overall Weight | 3200KG | |
| Overall Dimension | 2700X3800X1900mm | |
Highlights
1. Integral welded big square steel pipe, mounting surface of guide ail and rack processed by high-precision milling machine, ensure the machine running stability.
2. Big load capacity and long life;Y axis driven by double motors and planetary reducer; High machine rigidity and strong cutting strength ensure non deformation under high speed running.
3. Various of table styles makes convenient clamping materials and improves overall production efficiency.
4. Efficiency; Smooth bottom surface, clear edge contour and fine processing quality.
5. Main configurations adopts imported accessories which will ensure the overall running performance
6. Strict compliance with CE electrical standards for circuit design and production, and all parts have safe and reliable protection device.
